1. Q: What is the difference between monochromatic IP Phone and color LCD IP Phone?

A: B&W IP Phone A1X，A2X，A4X，CT1X can maximum simultaneously support 8-way calls, 5-way conference Color LCD IP Phone A48 and A68 can maximum simultaneously support 32-way calls, 9-way conference, connect with color LCD AET expansion module.

2. Q: how to distinguish between Wi-Fi and non-Wi-Fi phone?

A: From the appearance of the nameplate Wi-Fi phone with W and WAC, W supports 802.11g 2.4G band, WAC supports 802.11ac protocol 2.4G + 5G dual band. Wi-Fi settings can be detected from software,, the first time power-up Wi-Fi can be configured.

3. Q: How to use the bridging function?

A: In the normal network situation,telephone LAN port connected to the network cable, from the PC port cable to the computer, computers and phones can be simultaneously networked. This function can be used under the network cable only.

4. Q: Will Wi-Fi phones be unstable due to signal interference?

A: 2.4G interference will be more band interference, in addition to the interference of Wi-Fi channel itself, there are Bluetooth, microwave ovens, game consoles and other interference, Wi-Fi channel itself interference also less. However, due to the relatively small amount of voice data usage, the impact on voice calls when interfered is relatively small. If you follow our company's deployment instructions to deploy Wi-Fi phones and APs, stability will be better.

5. Q: How to choose the 2.4G and 5G band to deploy the phone?
A: 5G relative 2.4G advantage is less interference, the disadvantage is that the signal attenuation is relatively fast, the transmission distance is relatively close, so pure 5G band deployment costs will be higher, the stability will be better, 2.4G deployment costs lower, the stability will be slightly worse than 5G. According to a large number of actual use cases, 2.4G deployment will be more flexible in single AP environment.
If you use our dual-band phones, dual-band AP at the same time, 5G band used in the place that’s closer to AP, 2.4G band used to far away from AP, you can get the best results.

Installation question:

1. Q: How to install the telephone?

A: The phone box comes with cable, bracket, handle and power supply (non-POE phone requires power adapter ), and A1X and A2X series phones support wall mounted.

2. Q: Poor PoE phone power supply

A: Need to confirm:
1, Does the switch support PoE?
2, Whether the phone is PoE phone?

3, Does other PoE phone work properly, if there is only one phone, please return back.

3. Q: The phone can not obtain the DHCP address.

A: Need to confirm:
1.Whether the phone is properly connected to the network cable
2.Whether switch opened the DHCP server;
3.Manually set the static IP address is functioning properly.

4.Switch on the VLAN, need to switch off the phone LLDP function.

4. Q: Wi-Fi signal is weak
A: Need to confirm:

1.Wi-Fi phones and routers before the barrier less than 100M; 2. Is there any other router to set the same SSID to prevent the phone automatically connect to the weak AP; 3. Is single Wi-Fi phone problem

5. Q: How to get the configuration after phone powered on?
A: You can get deployed phone profiles from the server when the phone powered on. There are two options: The first one: LAN
1.Download the custom server path from the phone web.
2.Turn on the DHCP server option 66
The second: wide area network
1.Deploy on ATCOM RPS website
2.Turn on PBX PNP deployment

For more details, please refer to the automatic provision documents.

Questions to use:
1. Q: Often intermittent when talking by Wi-Fi phone.

A: Are APs and telephones deployed in accordance with ATCOM Wi-Fi telephony deployment requirements?

2. Q: Can not register on the account
A: Need to confirm:
1.Check the network is normal, IP address obtained by the phone can ping or not.
2.Check whether the phone account, password, server and port are consistent with the server;
3.Test the other accounts within the server is normal or not;
4.Check whether the page opens special configuration, such as DNS, outbound server;

5. Test soft phone is normal or not;

3. Q: The phone can not dialing
A: Need to confirm:
1.Check whether the network is normal
2.Check the web page configuration, for example: open DND, not enable codec and so on
3.In the server does not support the case, select the peer to peer function, the phone is just fake registration.

4.Test the other account on the server is normal or not, the account may have been occupied

5.Test the softphone

6.Check the server configuration

4. Q: There was a sound problem during the call
A: Need to confirm:
1.Check whether the network is normal
2.Use IP dialing, confirm there is no problem with phone handle and hands-free listening
3.If it is public network account, please open STUN, such as stun.sipgate.com
4.Check whether the phone has a special configuration, such as open SRTP, ZRTP and so on
5.Test the softphone is normal or not, if not, please check the server configuration

6.Using TCP account under Wi-Fi call

5. Q: How to check the phone IP address, software version and so on
A: There are two ways:
1.On the phone, press OK key (√), enter the state, press the key to pull down, you can view all the information of the phone.

2.On the phone webpage, you can see all information of phone in homepage.

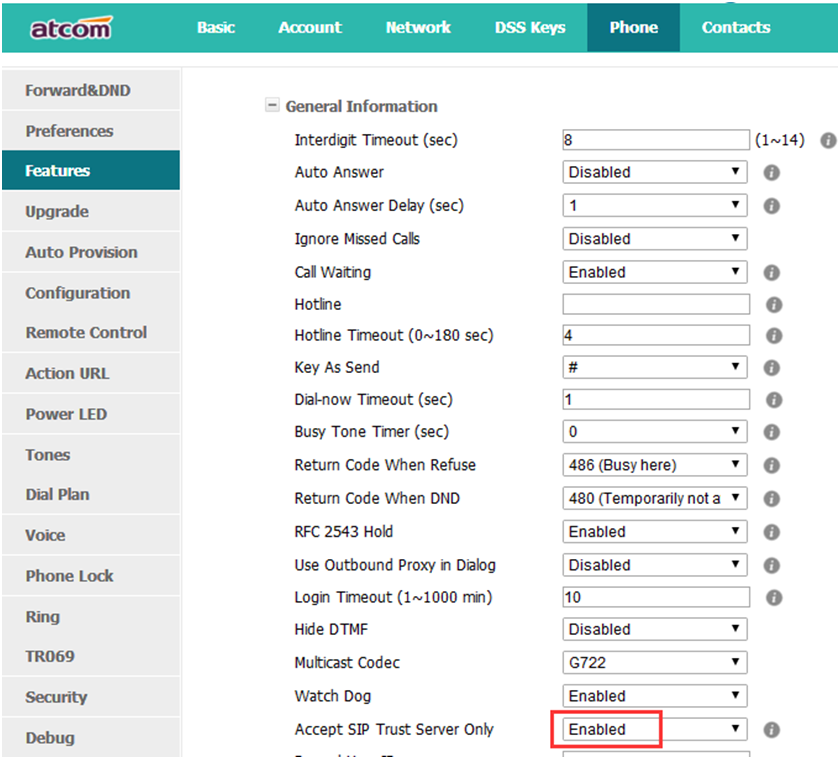

6. Q: When the phone receives an abnormal call, how to deal with it?
A: Because there are many routers in the network, they are sent to many different places. When the sending address is wrong, the phone receives an abnormal call.

Solution: Turn off the trusted server function.

7. Q: How to make a call in the case of non-registered account
A: In the same LAN, you can use IP dial-up,

How to use: Enter the IP address on the phone and dial it. For example: Dial IP 172.16.0.12, input 172 * 16 * 0 * 12 directly from the keyboard, and press the call-out key to call out.

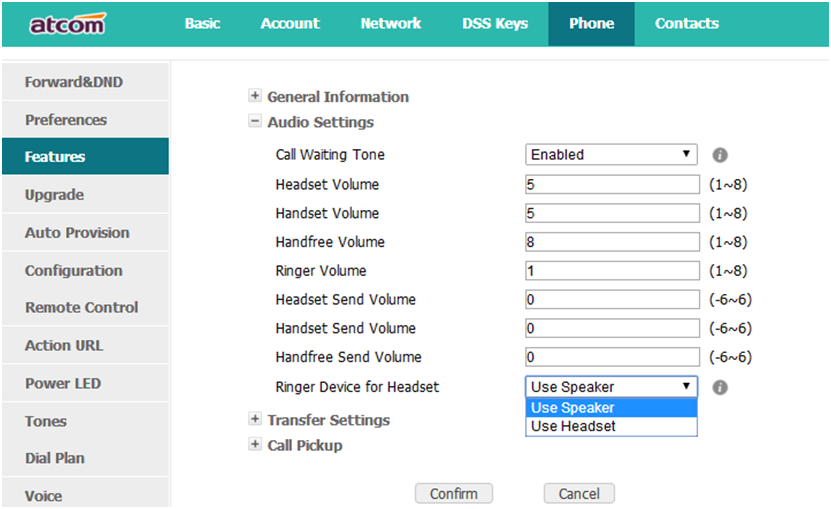

8. Q: The ring tone from the headset

A: Modify the configuration on the webpage.

9. Q: How to set the security lock quickly

A: Long press the # key to lock the phone menu, the default password is 123

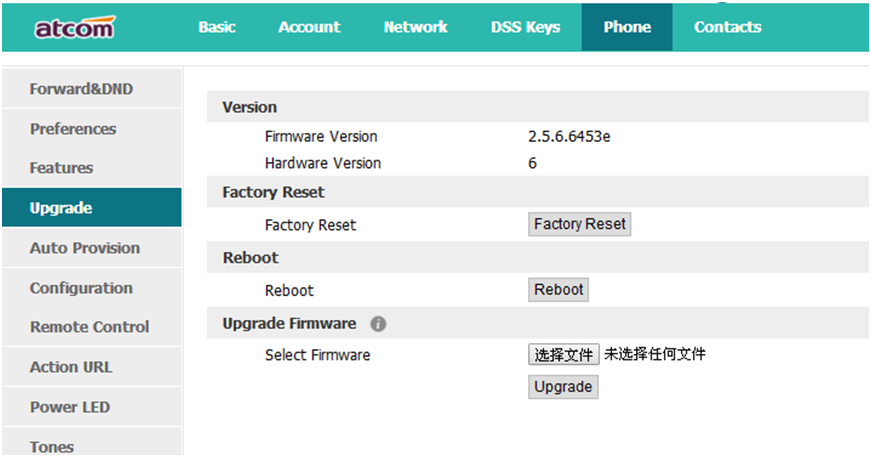

10. Q: How to restore the phone factory settings
A: There are four ways:
1.From the phone's advanced settings, enter the default password admin, press reset to factory default.

2.Restore the factory from a web page.

3.Long press the phone √ button to recall the factory function.

4.Press * and # keys while the phone powered on to resume factory settings.

11. Q: The phone web page can not be opened
2.Check whether turn off http & https web page function in phone settings.
3. Check whether there is open packet capture function, in the latest 2.5 version of the black and white IP Phone to open the catch message, the software will turn off the page, you can turn off the phone.

4. Check if it is browser caching problem, clear browser history or change computer to test.

12. Q: Does it support expansion module, the maximum quantity of keys can be configured?

A: A41 can be connected RE black&white expansion,up to 3, total 48 buttons can be configured. A48 and A68 work with AET color LCD expansion, up to 5units.

13. Q: Whether support wireless headset?
A: A48 and A68 color LCD IP Phone support EHS headset.
